Curlews keels and mechanisms have been removed and restored, fortunately a straightforward job as the stirrups had already been upgraded to stainless. The keels are in good condition but have shot blasted and primed ready of epoxy painting and new anodes. Plates and bolts are also in great condition but will get them galvanised again whilst they are out.
The Keel boxs have been very professionally replaced quite recently, so one less thing to do, very good.
- Curlew
IMG_3686

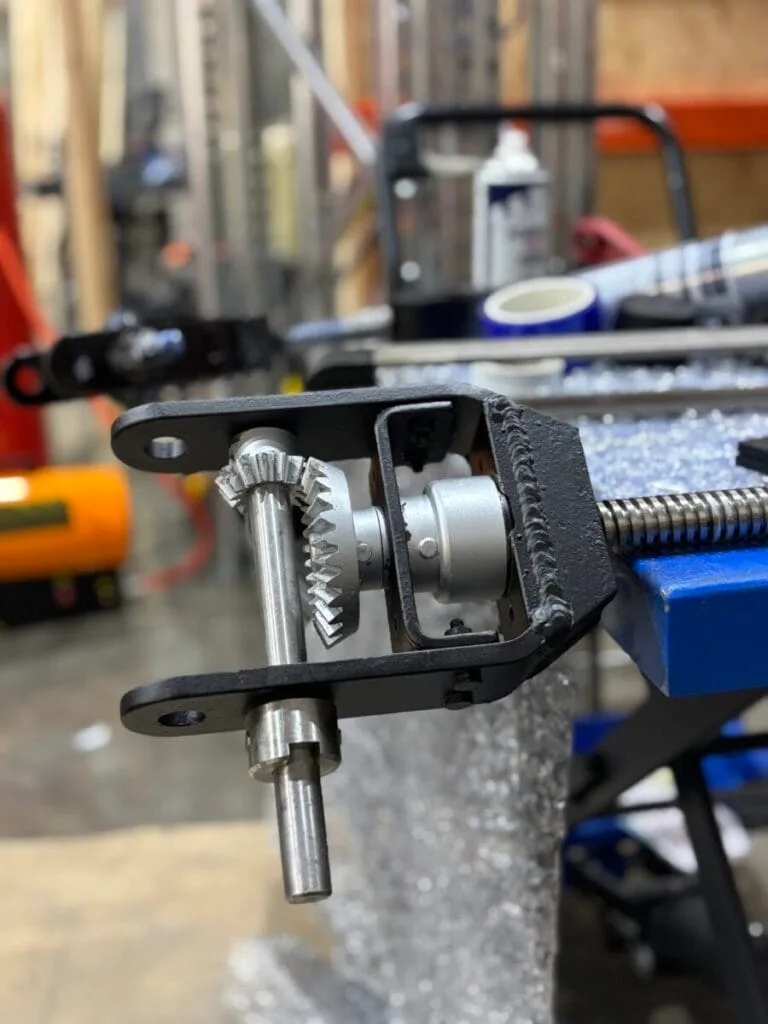

Keel lifting gear
IMG_3689

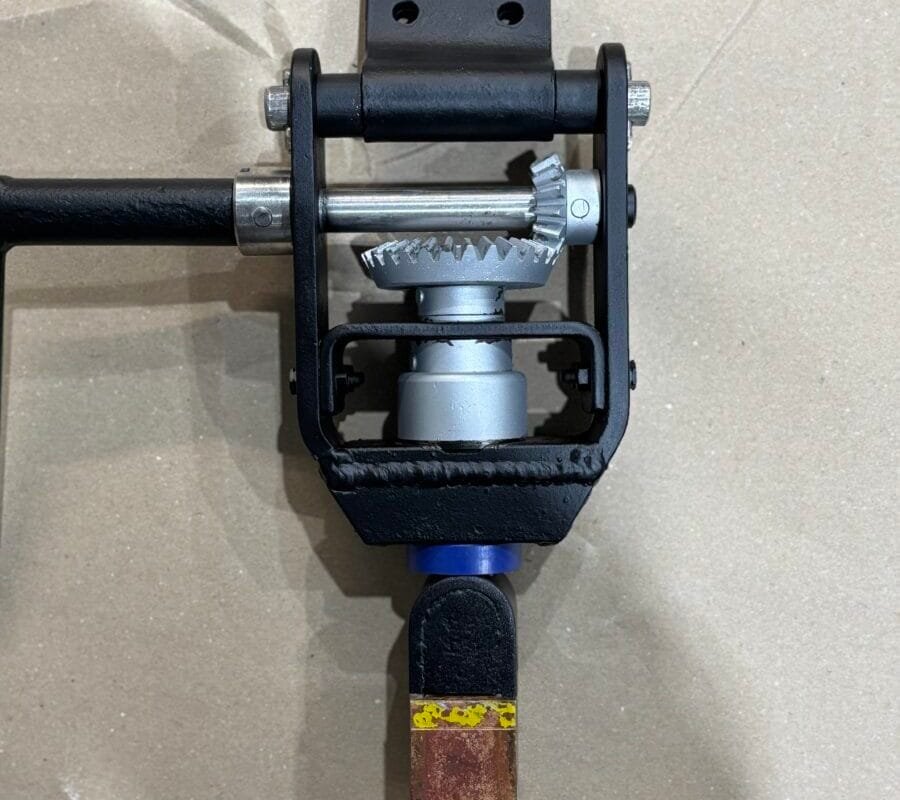

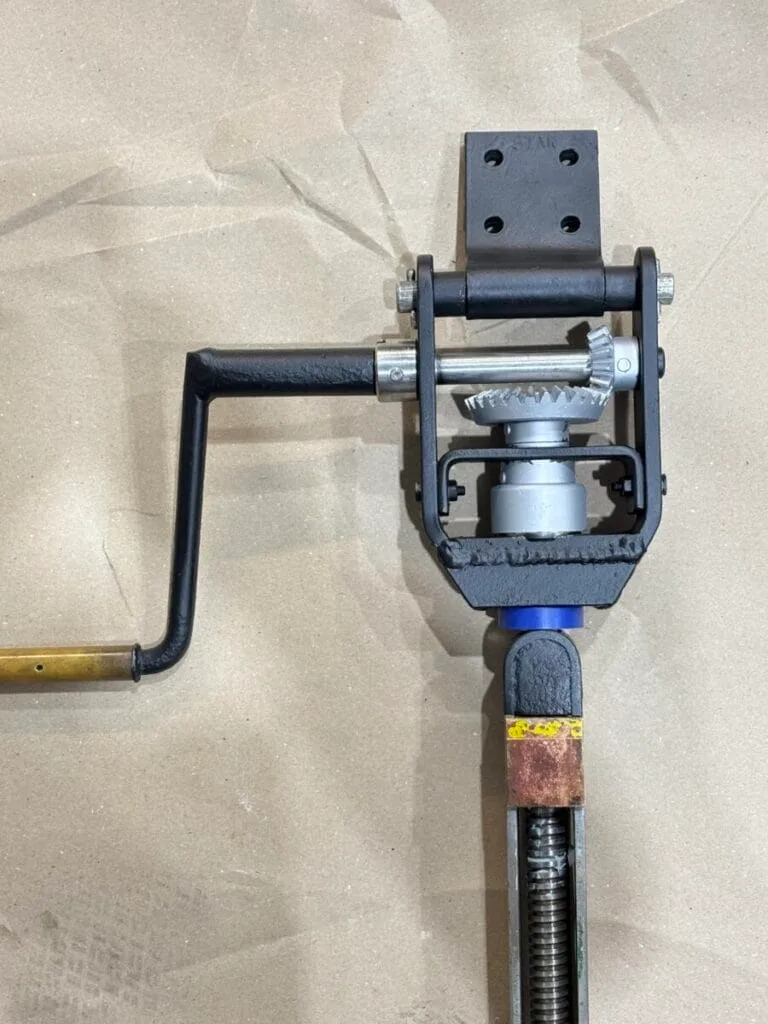

Keel lifting gear restored
1657a1ff-0c0d-4df7-96ee-47c224ab026f

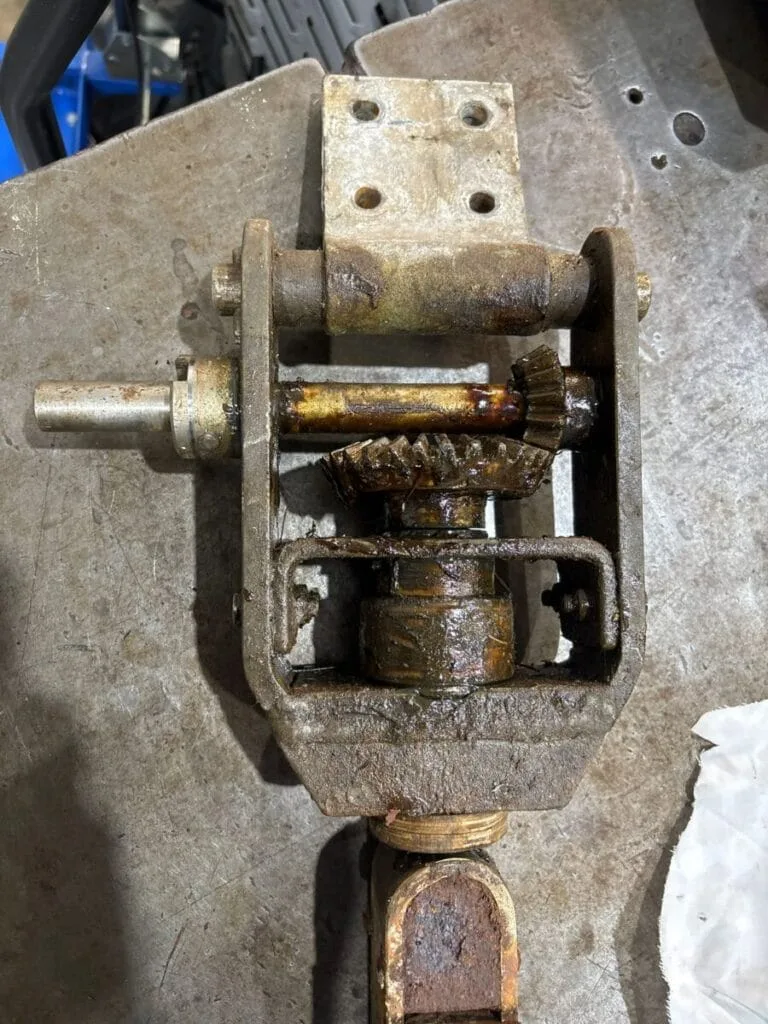

Keel lifting gear original condition
IMG_3542

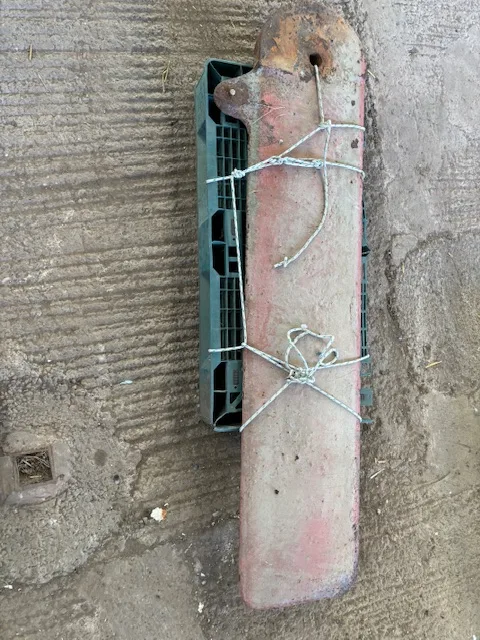

Iron keel to be blasted and painted
IMG_3556

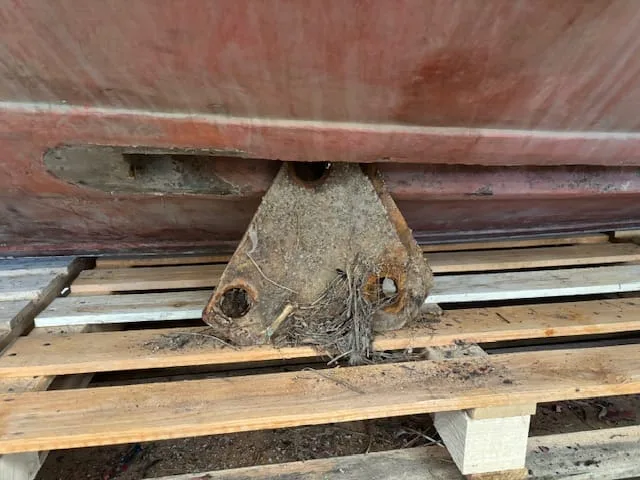

Keel pressure plate will be re-galvanised- David
- davidewingdavid@gmail.com
- I confirm that I have rights to the material uploaded above and agree that the AOA may use this material on the website as defined in the website Terms and Conditions (see link in footer)
David, wow!
This is all looking a bit thorough and smart!
Out of interest, what primer did you use on the keels and rudder?
Cheers
Nick
To be honest I don’t know!
The plan is to epoxy when the weather warms up.
The blasting company were clued up on this. They used a single pack that both cures at low temperatures and will not be dissolved by the 2-pack epoxy paint. Will ad anodes for good measure too.
I can recommend their work:
https://www.broctonpark.co.uk/sand-blasting

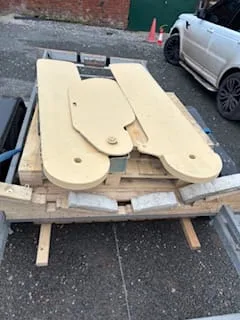

Blasted and primed
Very good!
